FP-18-L

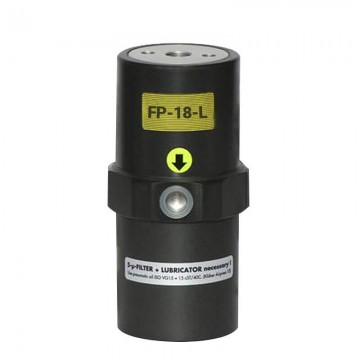

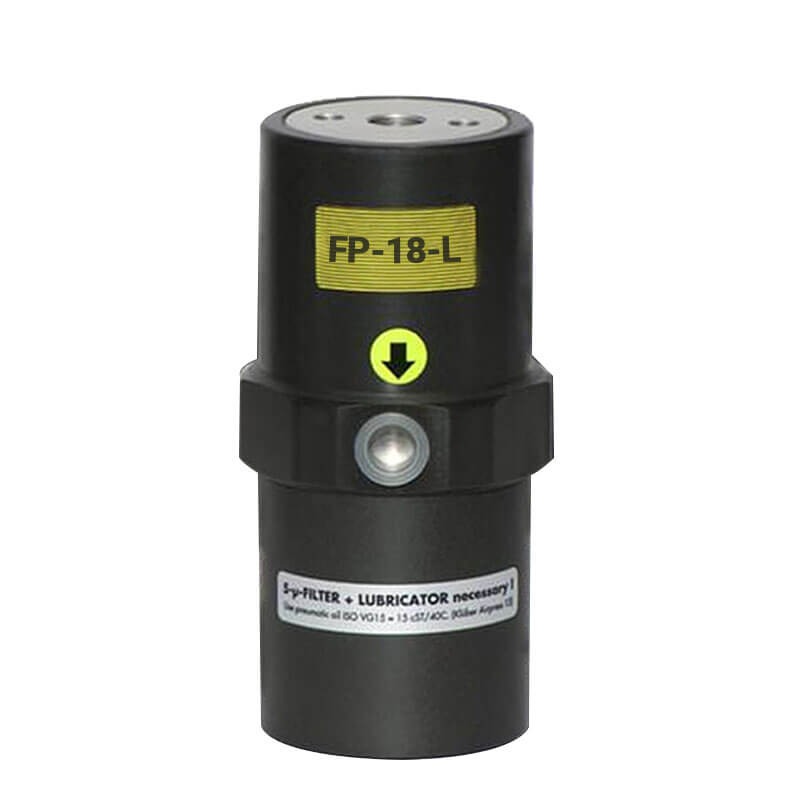

Findeva FP-18-L Piston Vibrator

Compact pneumatic piston vibrator for linear vibrations

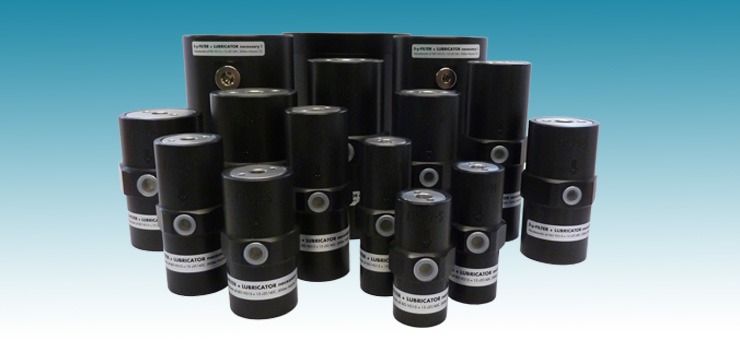

The Findeva FP Piston Vibrator is a high-quality pneumatic vibrator that generates powerful linear vibrations.
Thanks to its piston design, both the frequency and amplitude can be continuously adjusted by regulating the
air pressure and air supply. This makes the FP series highly suitable for a wide range of industrial applications requiring
controlled and reliable vibration.

The robust aluminium housing is hard-anodised, providing excellent resistance to wear, corrosion and demanding industrial conditions.
The FP series is available in various configurations, ensuring that a suitable pneumatic vibrator can be found for virtually any application.

Applications

The Findeva FP Piston Vibrator is used for a wide range of applications, including:

• Activating discharge chutes and troughs

• Improving the flow of powders and granules

• Preventing bridging in silos and hoppers

• Compacting bulk materials during filling

• Vibrating filling hoppers

• Driving small vibratory feeders

• Dosing and metering products

• Supporting mechanical production processes

• Removing trapped air from casting moulds

• Applications in the food, chemical, pharmaceutical and recycling industries



  Advantages of the Findeva FP Piston Vibrator

  • Linear vibration for controlled material movement.

  • Continuously adjustable frequency and amplitude, allowing easy adaptation to specific applications.

  • Compact and lightweight design, enabling installation in almost any location.

  • Low noise level compared to many other pneumatic vibrators.

  • High reliability thanks to its simple, wear-resistant construction.

  • Corrosion-resistant aluminium housing with a hard-anodised finish.

  • Suitable for high temperatures up to approximately 150°C. A version suitable for temperatures as low as -40°C is also available on request.

  • Resistant to demanding industrial conditions, including dust and moisture.

  • ATEX version available for use in potentially explosive atmospheres.

  • Low maintenance requirements and suitable for continuous operation.

    Technical Specifications

    The FP series consists of the FP-12, FP-18, FP-25 and FP-35 models, each available with different stroke lengths (S, M and L).

    Depending on the model, the series offers:

    • Vibration frequency: 2,400 to 9,300 vibrations per minute

    • Vibration force: 32 to over 1,000 N (the FP series is part of a broader product range offering even higher forces)

    • Operating air pressure: 2 to 6 bar



      Why Choose the Findeva FP?

      The Findeva FP combines a compact design, precisely adjustable linear vibrations and excellent durability.
      This makes it an ideal pneumatic vibrator for applications where consistent material flow, reliable product handling
      and minimal downtime are essential.

      With a wide range of models and configurations available, there is a suitable FP piston vibrator for virtually every industrial application.
