THYRISTOR CONTROL FOR MOUNTING ON DIN-RAIL
Type : CV-06-DIN
Supply voltage : 230 Volt ; 50/60 Hz.
Maximum current : 6 Ampere
Adjustable by means of : Adjustable resistance (potmeter)
Thyristor controls are used to control the force of an electromagnetic drive. Using a thyristor control, the transport speed of an electromagnetic vibrating chute or sieve can be infinitely controlled.

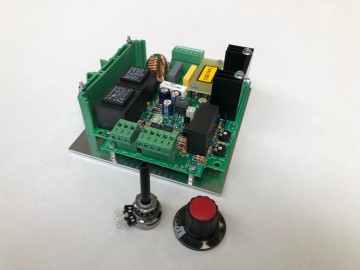

Adjustment of the desired value is done by means of a control signal of 0-10 volts, 0-20 mA or potentiometer of 100 kOhm. (potentiometer, range and rotary knob included)
Furthermore, the regulator is equipped with:
- Minimum and maximum desired value adjustment
- Slow/fast startup adjustable
- 3000/6000 vibrations per minute
- Potential-free start/stop contact

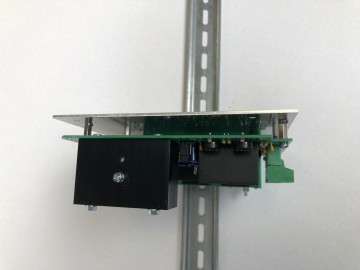

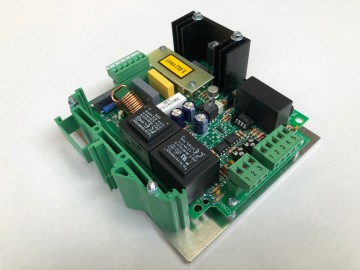

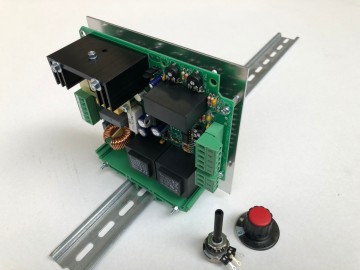

Supplied as a separate printed circuit board for mounting on a DIN rail.
(Optionally available built into a cabinet or as a printed circuit board without DIN-rail mounting)
